Oilfield cementing tools Cement basket/patel basket 5 1/2″
Oilfield cementing tools play a crucial role in the drilling and completion of oil and gas wells, and among these tools, the cement basket, also known as the Patel basket, is essential.
Specifically, the 5 1/2-inch cement basket is designed to provide effective zonal isolation and prevent the loss of cement slurry in weaker formations.
This tool contributes to the safety, stability, and integrity of the well, making it an indispensable part of the oil and gas industry’s cementing operations.
What is a Cement Basket?
A cement basket is a type of oilfield cementing tool made from durable materials like steel and flexible spring-like elements.
Its primary function is to hold cement slurry in place, ensuring that it does not flow into low-pressure zones or weak formations during the cementing process.
The cement basket is installed on the casing string at specific depths and acts as a physical barrier.
The basket design features resilient steel or alloy ribs and a flexible, often expandable, structure that enables it to adapt to different wellbore diameters, providing a secure, tight fit.
The 5 1/2-inch cement basket is tailored to fit a casing size of 5 1/2 inches, a common diameter used in oilfield drilling and production.
This size is suitable for various applications, including vertical and horizontal wells, and offers versatility across a range of well depths and conditions.
Importance of Cementing in Oil and Gas Wells
Cementing is a vital step in the construction of oil and gas wells.
It involves placing cement slurry in the annular space between the casing and the wellbore wall, which helps stabilize the well, prevents unwanted fluid migration, and protects the casing from corrosion.
Proper cementing ensures the well’s structural integrity, minimizing the risks of blowouts and protecting freshwater zones from contamination.
However, in some formations, especially those with low pressure or weak rock, the cement slurry might flow out of the intended zone.
Such losses can lead to a failed cement job, resulting in compromised well stability, production delays, and increased operational costs.
Cement baskets provide an effective solution for these challenges, helping to maintain a controlled and efficient cementing process.
Design and Functionality of the 5 1/2-Inch Cement Basket
The 5 1/2-inch cement basket is made with a specific set of materials and design elements to withstand harsh well environments.
The basket usually consists of durable metal bands attached to a series of spring-like staves or ribs, which expand radially to provide secure anchoring against the wellbore.
The flexibility of the basket allows it to compress and expand as needed, providing an adjustable fit.
Its primary function is to act as a physical barrier, holding the cement slurry in place and preventing it from migrating into weak or porous formations.
Applications and Benefits
The 5 1/2-inch cement basket is often used in cementing operations where weak formations are present.
Its applications include primary cementing, stage cementing, and squeeze cementing.
In primary cementing, the basket holds the cement in place while it hardens, preventing fluid migration.
For stage cementing, the basket allows operators to place cement at specific intervals, which can be particularly useful in horizontal or deviated wells.
The benefits of using a cement basket include enhanced zonal isolation, reduced cement loss, and improved well integrity.
By preventing cement from flowing into weaker zones, the cement basket helps maintain a higher cement column, ensuring that the slurry remains in the desired location.
This leads to more effective cementing, which ultimately enhances the well’s longevity and performance.
Conclusion
The 5 1/2-inch cement basket is a critical tool in the cementing process, especially in formations with low pressure or weak rock structures.
Its ability to hold cement in place minimizes the risks associated with cement loss, making the well safer and more stable.
By using cement baskets, oil and gas operators can achieve better zonal isolation, reduce operational risks, and increase well productivity.
In sum, the 5 1/2-inch cement basket, or Patel basket, stands as a fundamental component in oilfield cementing, supporting the safe and efficient completion of wells across the industry.
Description:
Slip On Canvas Cementing Basket
The Slip On Canvas Cementing Basket comprises of slip on type high strength with flexible bows that are mounted on the end collar.
The cementing basket has ability to accommodate much larger than nominal holesizes.
They are available in 4 ½” to 20” sizes and any kind of specific sizes.With this type of design cementing basket can be rotated and reciprocated.
Bows are hardened and tempered for maximum strength and uniformity.
It is run on casing or liners above weak or porous formations to provide protectionfrom hydrostatic pressure generated by the cement column.
Its overlapping canvas/metal fins provide flexibility and fluid passages which maintaining optimum support characteristics.
The cementing basket can expand or contract as needed and can be rotated or reciprocated.
Hinged Cementing Basket
It is available in the size range 4-1/2 ” to 20”.
This device consists of flexible steel spring bows welded to Hinged collars.
Bows are hardened and tempered for maximum strength and uniformity.
It is run on casing or liners above weak or porous formations to provide protectionfrom hydrostatic pressure generated by the cement column.
Its overlapping metal fins provide flexibility and fluid passage while maintaining optimum support characteristics.

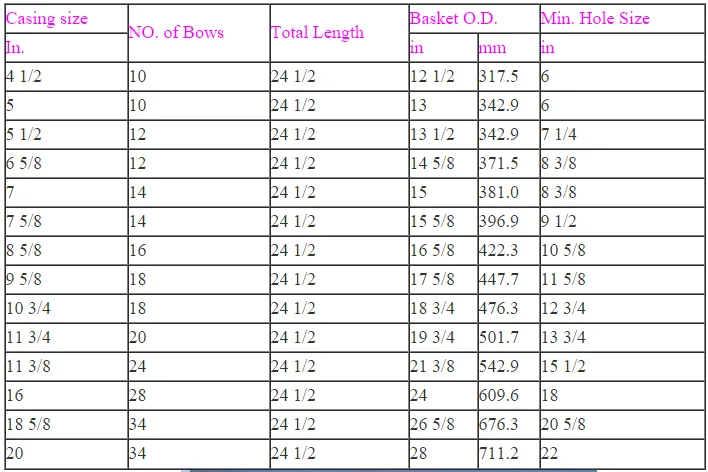

Specification:
Here are 15 frequently asked questions (FAQs) regarding the Slip-On Canvas Cementing Basket and Hinged Cementing Basket:
- What is a Slip-On Canvas Cementing Basket?
- A Slip-On Canvas Cementing Basket is a type of cementing tool used in oilfield operations. It features flexible bows mounted on an end collar, designed to hold cement in place above weak formations during cementing.
- How does a Slip-On Canvas Cementing Basket work?
- The basket is run on casing or liners above weak or porous formations to protect against hydrostatic pressure generated by the cement column. Its overlapping canvas and metal fins provide support and allow fluid passage, preventing cement loss.
- What sizes are available for the Slip-On Canvas Cementing Basket?
- These baskets are available in sizes ranging from 4 1/2 inches to 20 inches. Custom sizes can also be manufactured based on specific requirements.
- What is the advantage of a slip-on type cementing basket?
- The slip-on design provides quick installation and allows the basket to accommodate larger hole sizes, offering flexibility and ease of installation.
- Can the Slip-On Canvas Cementing Basket be rotated or reciprocated?
- Yes, the unique design of this basket allows it to be rotated or reciprocated as needed, which can help enhance cement placement and distribution.
- Why are the bows on the Slip-On Canvas Cementing Basket hardened and tempered?
- The bows are hardened and tempered to maximize strength and ensure uniformity, which is crucial for withstanding the forces and pressure in well environments.
- What is the primary use of the Slip-On Canvas Cementing Basket?
- Its primary purpose is to prevent cement slurry from migrating into weak or porous zones by holding the cement column in place above these formations.
- What materials are used in constructing the Slip-On Canvas Cementing Basket?
- The basket typically combines high-strength steel for the bows and flexible canvas and metal fins for added support and fluid passage.
- What is a Hinged Cementing Basket, and how does it differ from the slip-on version?
- The Hinged Cementing Basket has flexible steel spring bows welded to hinged collars, allowing it to open and close. Unlike the slip-on type, the hinged design facilitates easier installation on larger casing sections.
- What sizes are available for the Hinged Cementing Basket?
- The hinged type is also available in sizes ranging from 4 1/2 inches to 20 inches, similar to the slip-on version.
- How does the overlapping metal fin design benefit the cementing basket?
- The overlapping metal fins provide flexibility and support while allowing fluid passages. This design ensures better cementing efficiency by preventing blockages and maintaining optimal support.
- In what conditions are Slip-On Canvas and Hinged Cementing Baskets most effective?
- These baskets are ideal for use above weak or porous formations where there is a risk of cement loss due to low pressure or formation weaknesses.
- Can these cementing baskets be used in both vertical and horizontal wells?
- Yes, both types of baskets can be used in vertical and horizontal wells, making them versatile for a range of wellbore configurations.
- What benefits does the canvas provide in the Slip-On Canvas Cementing Basket?
- The canvas component adds flexibility to the basket, allowing it to expand and contract as necessary, which is beneficial in adapting to various hole sizes and well conditions.
- Why is it important for the cementing basket to resist hydrostatic pressure?
- Resisting hydrostatic pressure is crucial because it prevents cement from being forced into weak formations, which could lead to well integrity issues and loss of cementing efficiency.
